Administrators and Managers with Connector-management permission can create a connection between Claravine and another account or platform. An Account will use an API connection to pull data into Claravine or push data from Claravine.

What is the difference between inbound and outbound?

• Inbound can pull in fields of data from an external solution which prepopulates information for review, modification and enrichment that the user would otherwise need to add manually
• Outbound can send out fields of data to an external solution to replace or enrich data.

To view available integrations and filter by inbound and outbound, visit: https://www.claravine.com/integrations/

Integration availability varies by contract. Please reach out to your CSM and/or Account Executive for more details.

View a Connector

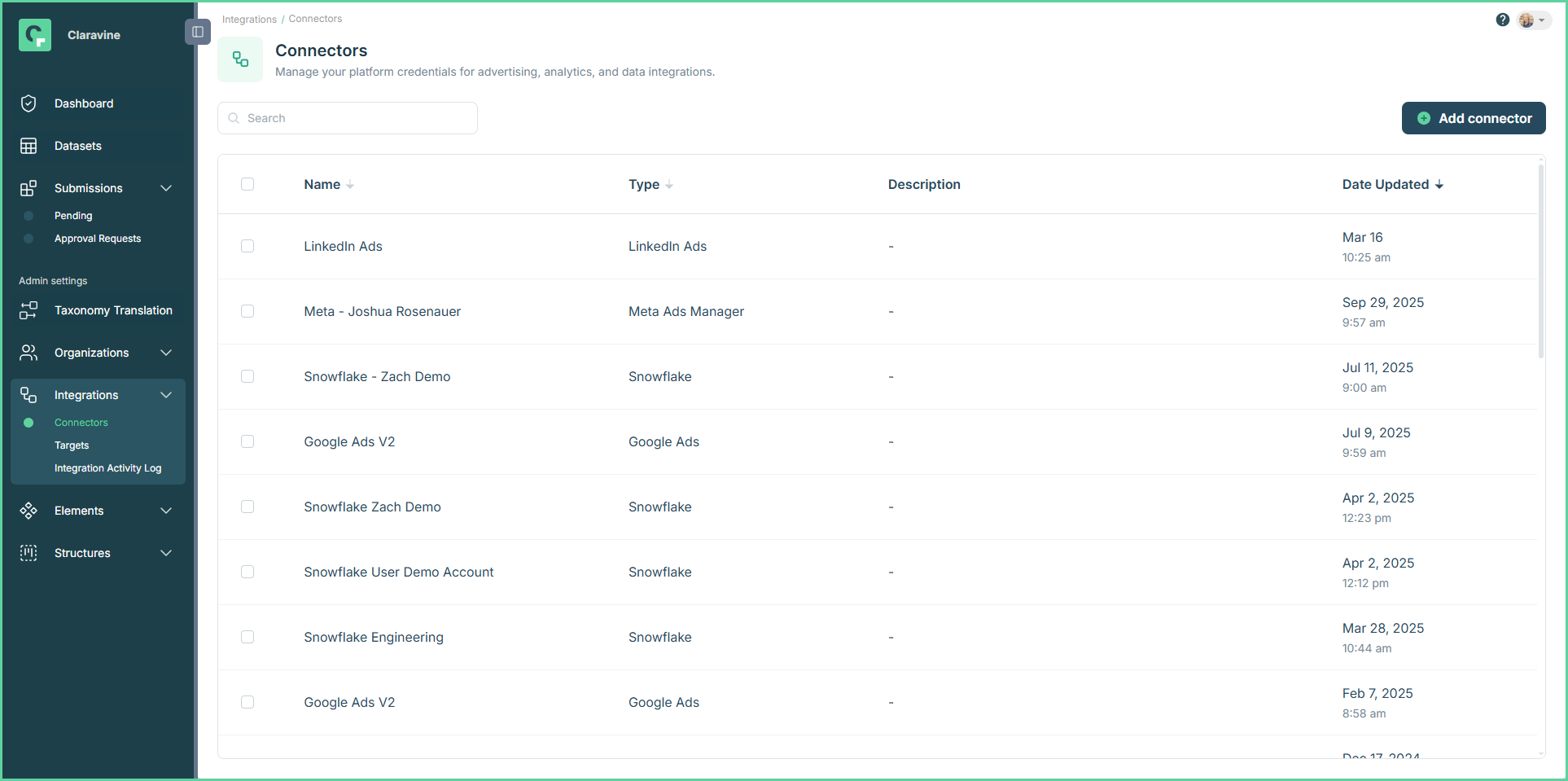

To view an account, navigate to Settings → Integrations → Connectors. The Connectors page displays.

You can view the following information about the Connectors:

• Name
• Type
• Description
• Date Updated

The sort feature is available for all columns. You can sort all columns in ascending or descending order.

• Create a Connector

  To create a Connector:

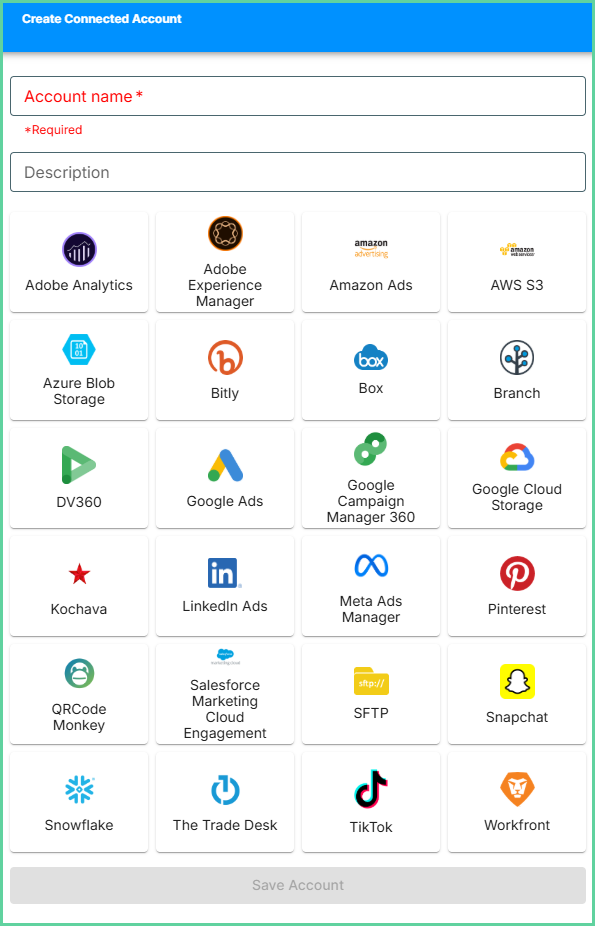

  1. In the Connector page, click +Add Connector.
       The Edit New Account menu displays.


  2. Enter the following information for the Account:
     • Name
     • Description


  3. See the requirements for each Connector in their respective integration support article.



• Edit a Connector

  To edit a Connector:

  1. On the Connectors page, click the name of the Connector you want to modify.
     The Edit Connector menu displays.


  2. You must enter the Required Account Information to make any changes to the Connector.

  3. Click Save.


• Custom Field Mapping

  All integrations come with a standard set of fields to map data from or to depending upon which type of integration you select. In many cases, this set of fields allows you to sync the majority of data you’d like. However, some products allow you to extend their standard set of fields through additional custom fields or properties — particularly enterprise applications. It’s also common that critical metadata is contained in those custom fields and should be standardized to ensure optimal results.

  In order to target data in these custom fields via an integration, you can use custom field mappings to extend the base set of fields our integrations offer.



  Supported Integrations

  Custom field mappings are available for any integrations where the product allows custom fields or properties to be created. Currently, you can add custom field mappings to the Branch and Adobe Experience Manager integrations.

  • For more on Branch key-value pairs, see their documentation.
  • For more on Adobe Experience Manager custom properties, see their documentation.

  If you have data in a custom field you’d like to sync through an integration other than those listed above, please contact your CSM.



  Set Up Custom Mappings

  Custom mappings are linked to each connected account you set up. To learn more about how to set up a connected account, see the Accounts Overview article.



  To set up custom field mappings on a Connector:

  1. Navigate to Settings > Integrations > Connectors.

  2. Click the Connector Name to open and edit a current configuration or +Add connector to create new.

  3. Enter the required credentials.

  4. Click Custom Field Mappings to expand the section at the bottom.

  5. Enter the API-friendly name of the field in the Remote Entity field (if you’re unsure, please contact the admin for that system at your organization or your CSM).

  6. Enter a user-friendly name in the Field Label field. This is only used for display when mapping fields on a template.
     Add "custom" at the end of the user-friendly name to make it clear it is a custom field.

  7. Click the Add New button to add multiple custom mappings.

  8. Click Save to save the connected account.

  All done! Now, these custom fields will be available as field mappings when you configure an integration using this connected account.

  Use Custom Mappings in an Integration

  Once you have custom field mappings setup, you can access them while you setup mappings on an integration.

  To map data to a newly configured custom field, you will need to:

  1. Navigate to an existing template or create a new template. Read the Create a Template Start to Finish walk-through article.

  2. Navigate to Step 3 - Integrations.

  3. Open an existing integration or click+Inbound or Outbound integration, depending on if you are bringing data in or sending data out, to add a new Integration.

  4. Click to Add New Mapping.

  5. In the Map from {integration} dropdown list, type-search or scroll through the list to select a new custom field. In the Map to Claravine dropdown list, type-search or scroll select the field in the template to map to.
     Only fields that have been added in Step 2 - Define and Govern will be available to map to.


  6. Click Save to save your template.

  After the save completes, the next scheduled sync will either sync data to/from the custom field depending on what integration you are using.



  Remove Custom Mappings

  To remove a custom field mapping, you will need to:

  1. Navigate to the connected Connector.

  2. Click to edit its configuration in the sidebar.

  3. Click to expand the Custom Field Mappings section at the bottom of the edit menu.

  4. Click the delete button next to any of the custom mappings.

  5. Click Save.
     Important Note: Removing custom field mappings will impact any syncs that use a custom field mapping. Please be sure to remove any field mappings to the custom field on all integrations prior to deleting the field mapping itself.



  What's next?

  • Read the Claravine + AEM Integration article
  • Read the Claravine + Branch Integration article+


• Delete a Connector

  To delete a Connector:

  1. On the Connector page, click the name of the Connector you want to remove.

  2. Click the Delete button.

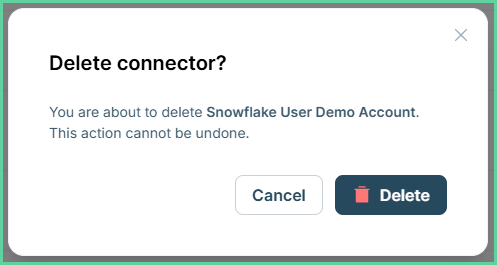

     A confirmation message displays.


  3. Click Confirm.
